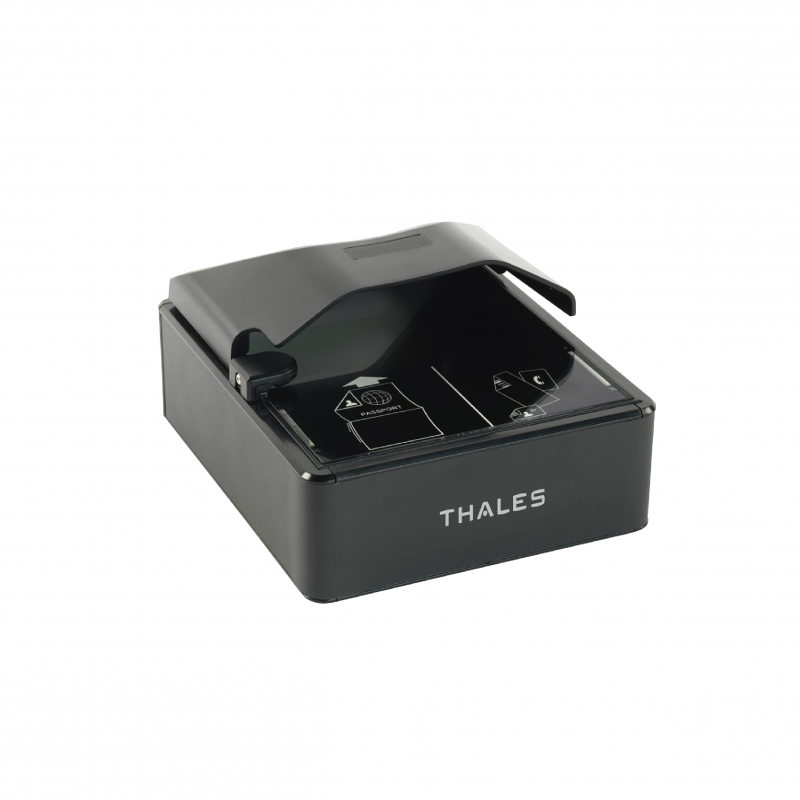

Thales Gemalto - AT10K View larger

Thales Gemalto - AT10K


Designed for use in demanding border management scenarios,the AT10K is based on detailed and exhaustive analysis of field experience and numerous deployed projects.

Gemalto has created a new stylish look that will fit into the décor of the most upmarket Customer facing service desks

More details

Dimensions Length: 18.7cm - Width: (6.3”) - Height: 10.3cm
Weight 2.2 lbs
Warranty 1 Year
Resolution 400 DPI high resolution imaging
Connectivity USB 2.0 high speed compatible
System Integration ISO 14443 Type A and Type B ICs - Active and Passive authentication of ePassports. - Full SDK including DLLs, OCXs and demonstration programs. Support for Visual C++®,Visual Basic®, C++ Builder®
Regulatory FCC Part 15 Class A · UL, UL-C · CE, CB · WEEE/RoHS1
Operating Environment Humidity: 20 to 95% (R.H. non-condensing) - Temperature: -10º to 50º C operating; -20º to 50º C storage
Features OCR data capture· Complete access to OCR data and images captured via Software Development Kit (SDK)· Enables images to be accessed as BMP, PNG or JPEG format· Auto-triggering of document capture – presence of document is automatically detected
Reading Capability Documents conformes OACI en infra-rouge proche (IR) selon ICAO 9303 Spécification Pièces 1-4 - Code-barres 1D (2/5 entrelacés, code 128 et code 39), 2D (formats PDF 417, QR, DataMatrix ™, Aztec).
